Aerospace Airframe CNC Machining

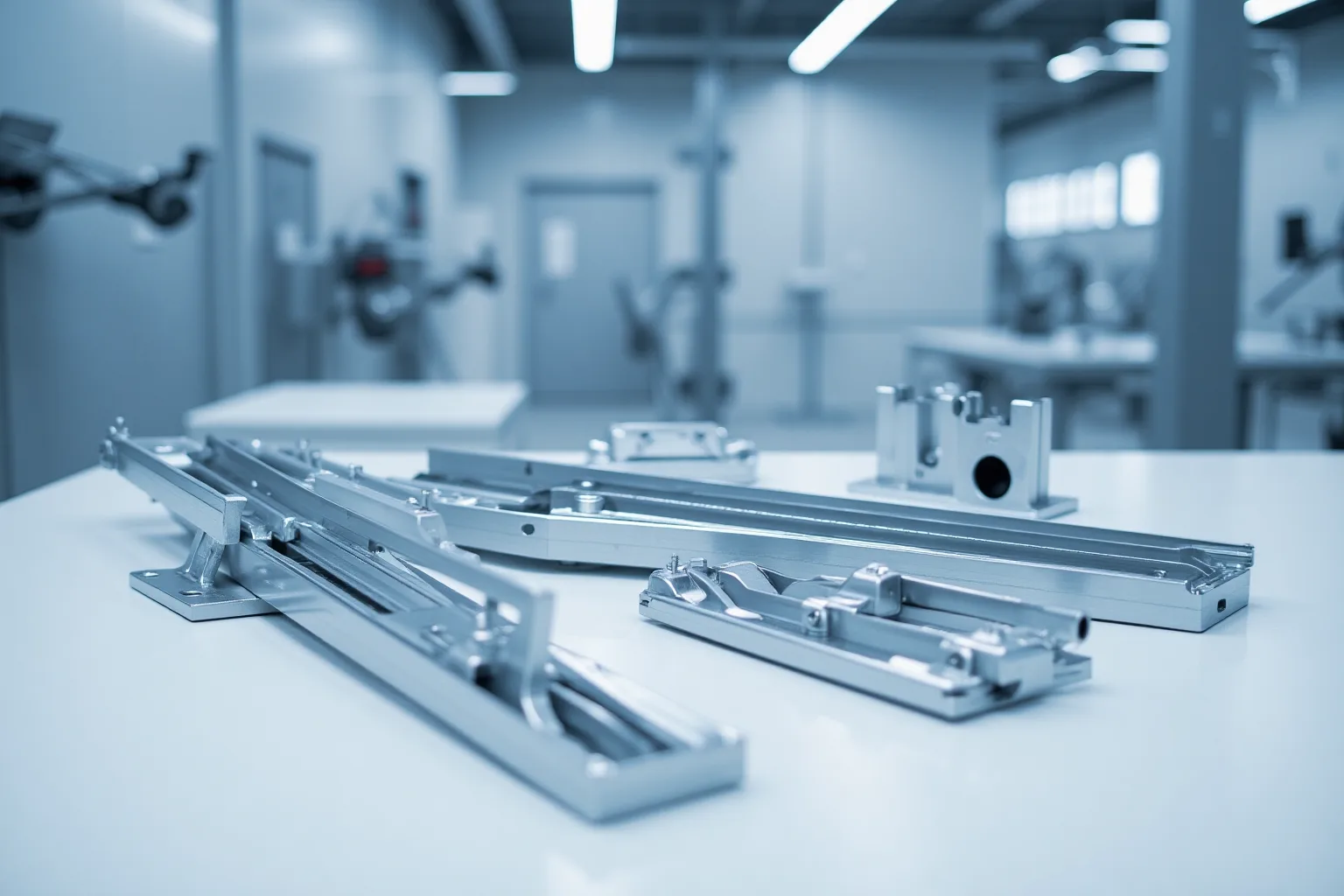

Precision-engineered aerospace airframe parts

Case Brief: Part Function and Requirements

The case focuses on airframe structural components where a bracket has to locate reliably against adjoining structure while keeping pockets, mounting faces and fastener features accessible for machining. The drawing establishes the datums and fit requirements for the assembly.

The machining review maps tool access and workholding to those datums, then plans checks around the bracket interfaces. This is the practical context for airframe bracket machining and related aircraft structural fittings: acceptance follows the approved drawing and agreed inspection scope.

Start Your Project →

Engineering Challenge and Machining Approach

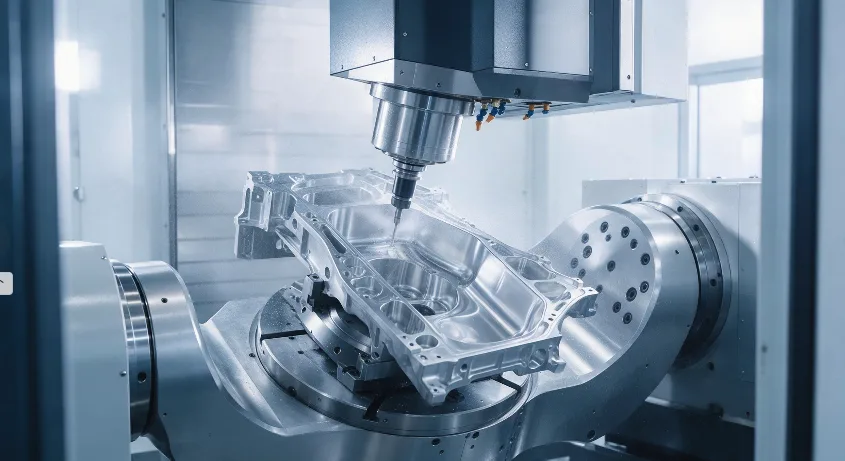

5-axis CNC machining complex aerospace geometry

Complex Geometry, Single Setup

The manufacturing review compares tool access, workholding, material removal and inspection requirements. Any process change or expected performance benefit is confirmed against the part drawing and validated project data.

Whether you need asymmetric mounting brackets or aerodynamic wing skins, we machine complex geometries in a single fixturing—saving you time and reducing the risk of human error.

See All Capabilities →

Aerospace quality inspection and documentation

Drawing-Based Inspection and Documentation

Customer-specific documentation and special-process needs are reviewed before quotation and included only when agreed in the project scope.

Your quality team receives everything needed for regulatory compliance—from raw material heat numbers to final inspection sign-offs.

Request Sample Report →

Difficult aerospace materials CNC machining

Difficult Materials, Mastered

From AL2024 and 7075-T6 aluminum to Ti-6Al-4V titanium and Inconel 718 superalloys, your most challenging materials are our standard stock. Below is a summary of the alloys we machine for airframe components, the parts we produce, and the machining considerations our engineers apply for each grade.

Alloy / Grade	Common Airframe Parts	Machining Notes
Aluminum 7075-T6 / 6061-T6	Structural brackets, ribs, machined skins	High-speed 3/5-axis cutting; stress-relief before final machining; hard anodize per MIL-A-8625
Aluminum 2024-T351	Fatigue-critical frames and stringers	Thin-rib strategies with balanced roughing; distortion control after anodize
Titanium Ti-6Al-4V (Grade 5)	High-load fittings, fasteners, pylon hardware	Low speeds, high feed; rigid 5-axis setup; cryo stabilization post-machining
Stainless 17-4 PH / 15-5 PH	Bushings, pins, actuation hardware	Precipitation-hardening grades; passivation per AMS 2700 / ASTM A967
Inconel 718 / 625	Engine-adjacent structures, thermal zones	Ceramic tooling with through-spindle coolant; slow, controlled stock removal

The drawing defines the datums and fit criteria for the selected material; inspection scope is agreed for the project.

Material and Process Decisions

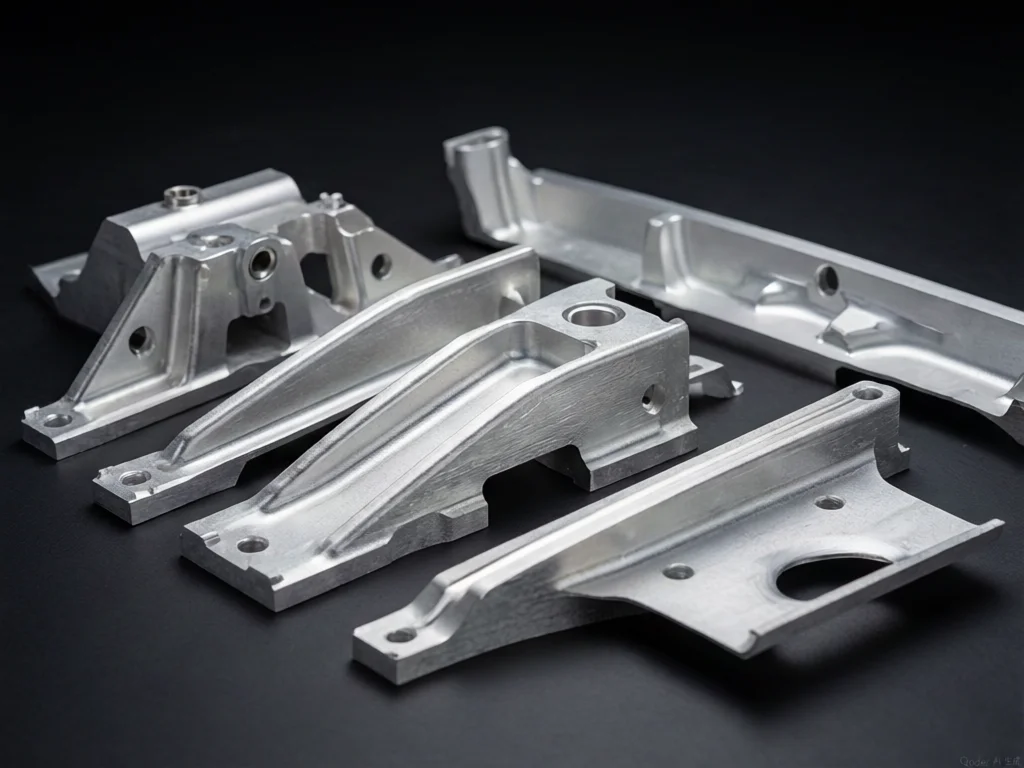

Aluminum 7075 and 2024 aerospace CNC machining

Aluminum 7075 / 2024

High strength-to-weight ratio for structural brackets, ribs, and skins. Heat-treatable with excellent fatigue resistance.

AMS 4045 / AMS 4037

Titanium Grade 5

Ti-6Al-4V for critical fasteners and high-load fittings. Superior corrosion resistance and strength-to-weight ratio.

AMS 4911 / AMS 4928

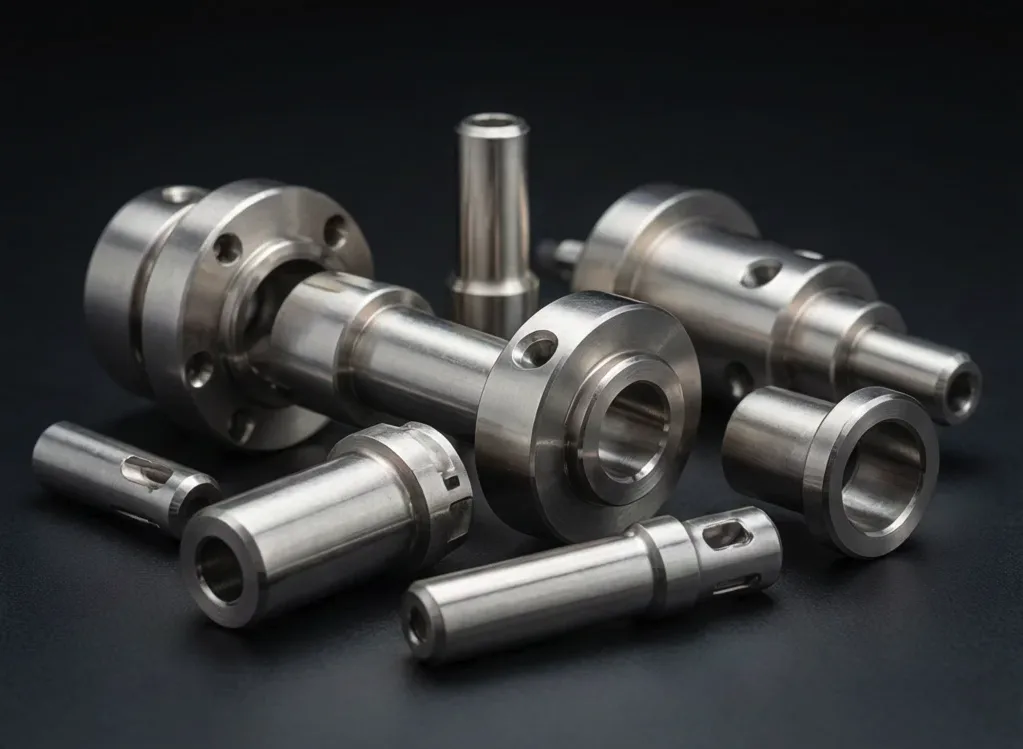

Stainless Steel 17-4 PH

Precipitation-hardening grade for bushings, pins, and corrosion-critical hardware. Passivated per ASTM A967.

AMS 5643 / ASTM A564

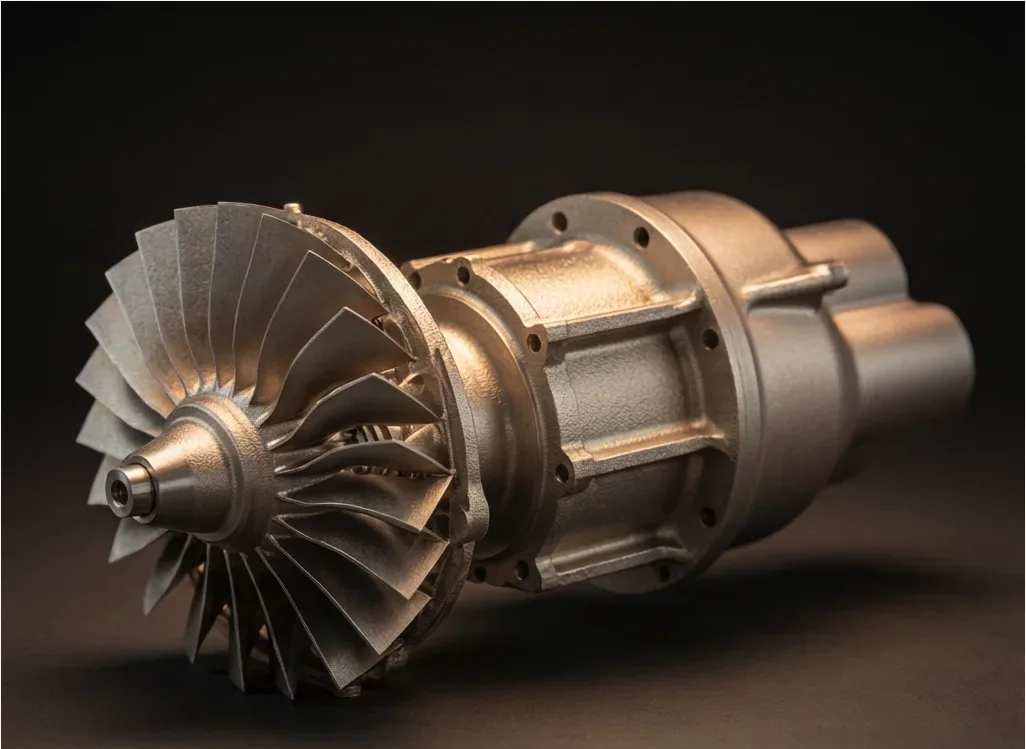

Inconel 718

Nickel-chromium superalloy for high-temperature zones and engine-adjacent structural components.

AMS 5662 / AMS 5664

Download Material Datasheet →

Case Components and Machining Focus

Airframe Structure	Typical Machined Parts	Machining Challenge & Our Approach
Fuselage	Frames, stringers, longeron splices, seat tracks	Thin-wall aluminum sections deform easily; we use balanced roughing and contoured fixtures to hold flatness per drawing through anodizing.
Wings	Ribs, spars, wing skins, fuel-access fittings	Large contoured surfaces machined 5-axis in a single setup; integral stiffeners eliminate assemblies and reduce fastener count.
Stabilizers (Empennage)	Horizontal/vertical stabilizer ribs, hinge brackets	As specified in the drawing / agreed scope
Flight Control Surfaces	Hinge fittings, actuator mounts, control horns	Titanium and 17-4 PH hinge hardware machined to the tolerances specified on the drawings for precise, bind-free rotation over the aircraft's life.
Undercarriage (Landing Gear)	Trunnion blocks, axle bushings, drag-brace fittings	300M steel and titanium options; heat treatment and non-destructive evaluation are specified and documented when required by the drawing.

The same structural principles apply to airframe components of rockets and missiles—stage attachment rings, fin roots, and payload adapters—which we machine in comparable alloys with the same documentation package.
